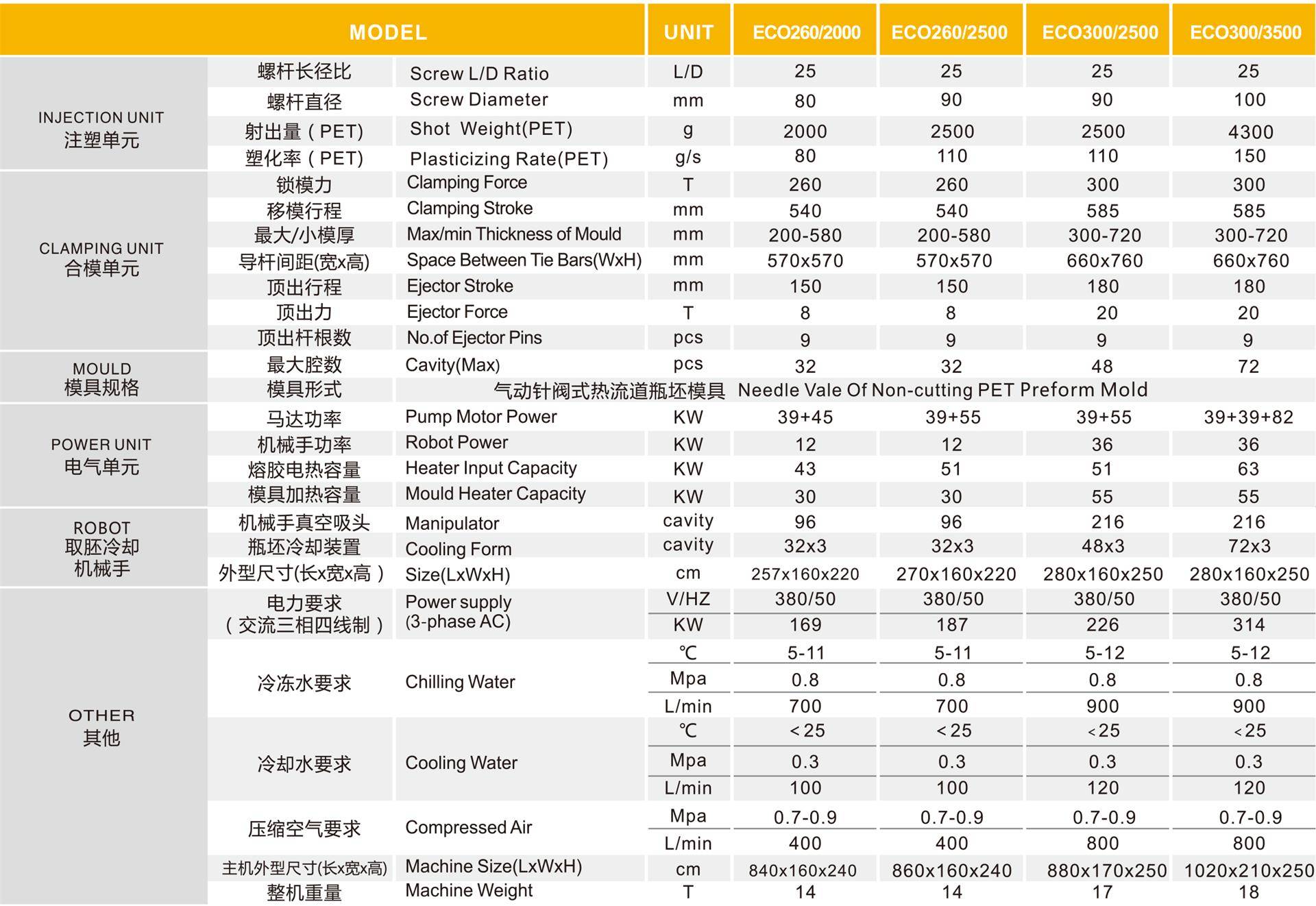

Screw Diameter: 80mm Shot Weight(PET): 2000g Clamping Force: 260T Ejector Stroke(mm): 150mm Distance between Tie Bars: 570x570mm Plasticzing Rate(PET): 80g/s Max Cavities: 32-72 Machine Size: 8.4x1.6x2.4m Machine Weight: 14 Ton
UPGRADING THE TRADITIONAL METHOD OF PREFORM PRODUCTION
♦ Reduce Your Initial Investment
♦ Turn-Key Solution

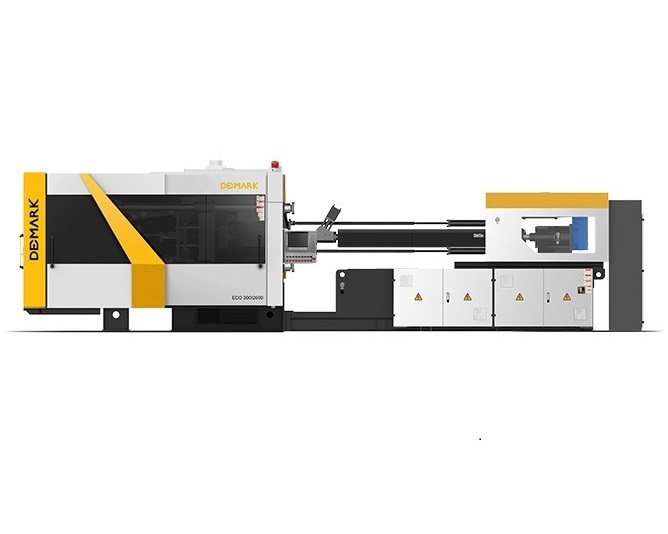

Brings you the ECO series high efficient preform injection system with many years' innovation. The system is up to 72 cavities and double production capacity with normal injection machine.
With the advanced pressure hold technology, the system makes the plasticization and pressure hold at the same time therefore has a bettercycletime for production.
With DMK precision preform injection molds, post cooling take out robot, centralized control system and high efficient material drying system, the ECO series brings you more returns with limited investment.

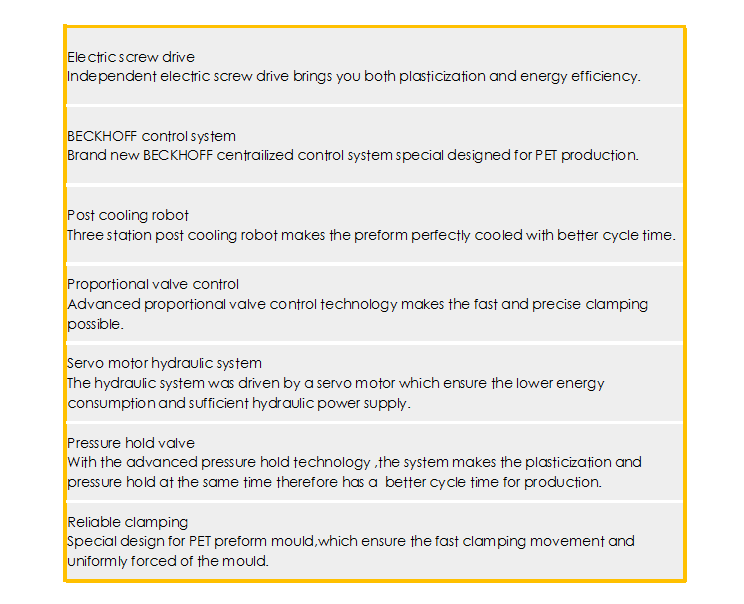

2.Brand new BECKHOFF centrailized control system special designed for PET production.
3.Three station post cooling robot makes the preform perfectly cooled with better cycle time.
4.Advanced proportional valve control technology makes the fast and precise clamping possible.
5.The hydraulic system was driven by a servo motor which ensure the lower energy consumption and sufficient hydraulic power supply.
6.With the advanced pressure hold technology ,the system makes the plasticization and pressure hold at the same time therefore has a better cycle time for production.
7.Special design for PET preform mould,which ensure the fast clamping movement and uniformly forced of the mould.
Tincoo(Changxing) Packaging Technology Co.,Ltd.
There are 2 general departments in our company: machinery department & mold department. Machinery department focuses on designing and developing various plastic extrusion blows molding machine by learning foreign advanced techniques& administration faith; mold department focuses on mould design and manufacturing of preform mold& extrusion mold&blow mold. According to different character of different plastic material, we have successfully designed different machines, which are suitable for different products: container of PE, PVC, PP, PC, PETG, PS, PAN, PA, PPE, PPO, ABS, POM, TRA, etc(like big tank, collapsible container car plastic hollow part, office equipment,sport facility, toys, mechanical container,5 gallon PC container,tool box, etc). We have an experienced team will design, produce and offer service after service with great team spirit.High quality but reasonable price has been widely approved by our customers from local and abroad.
