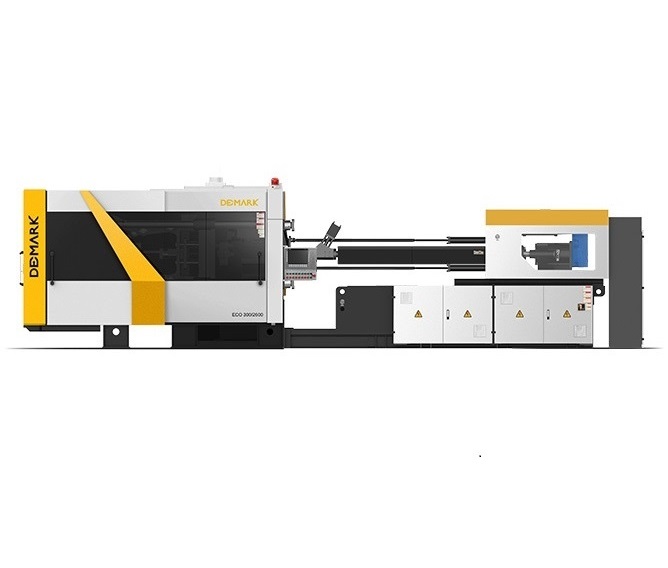

ECO Injection Molding Machine--ECO300/2500
Product Description
Product Overview
DP300/2500 Screw Diameter: 90mm Shot Weight(PET): 2500g Clamping Force: 300T Ejector Stroke(mm): 180mm Distance between Tie Bars: 660x760mm Plasticzing Rate(PET): 110g/s Max Cavities: 48 Machine Size: 8.8x1.7x2.5m Machine Weight: 17 Ton
UPGRADING THE TRADITIONAL METHOD OF PREFORM PRODUCTION
♦ Totally Change The Way Of Pet Preform
♦ Reduce Your Initial Investment
♦ Turn-Key Solution
Brings you the ECO series high efficient preform injection system with many years' innovation. The system is up to 72 cavities and double production capacity with normal injection machine.
With the advanced pressure hold technology, the system makes the plasticization and pressure hold at the same time therefore has a bettercycletime for production.
With DMK precision preform injection molds, post cooling take out robot, centralized control system and high efficient material drying system, the ECO series brings you more returns with limited investment.
♦ Reduce Your Initial Investment
♦ Turn-Key Solution
Brings you the ECO series high efficient preform injection system with many years' innovation. The system is up to 72 cavities and double production capacity with normal injection machine.
With the advanced pressure hold technology, the system makes the plasticization and pressure hold at the same time therefore has a bettercycletime for production.
With DMK precision preform injection molds, post cooling take out robot, centralized control system and high efficient material drying system, the ECO series brings you more returns with limited investment.
ECO Injection Molding Machine Feature:
1.Independent electric screw drive brings you both plasticization and energy efficiency
2.Brand new BECKHOFF centrailized control system special designed for PET production.
3.Three station post cooling robot makes the preform perfectly cooled with better cycle time.
4.Advanced proportional valve control technology makes the fast and precise clamping possible.
5.The hydraulic system was driven by a servo motor which ensure the lower energy consumption and sufficient hydraulic power supply.
6.With the advanced pressure hold technology ,the system makes the plasticization and pressure hold at the same time therefore has a better cycle time for production.
7.Special design for PET preform mould,which ensure the fast clamping movement and uniformly forced of the mould.
2.Brand new BECKHOFF centrailized control system special designed for PET production.
3.Three station post cooling robot makes the preform perfectly cooled with better cycle time.
4.Advanced proportional valve control technology makes the fast and precise clamping possible.
5.The hydraulic system was driven by a servo motor which ensure the lower energy consumption and sufficient hydraulic power supply.
6.With the advanced pressure hold technology ,the system makes the plasticization and pressure hold at the same time therefore has a better cycle time for production.
7.Special design for PET preform mould,which ensure the fast clamping movement and uniformly forced of the mould.
PRODUCT SPECIFICATIONS
SALES AND SERVICE NETWORK
Tincoo(Changxing) Packaging Technology Co.,Ltd.
TINCOO MACHINERY is a professional supplier devoted to the designing & production of big-scaled and multi-layer extrusion molding machine. The company is located on the south shore of Taihu Lake--Huzhou, with total investment of 10 million dollars, covering a total area of 58,000 square meters. Machines from the company are mainly for export, and have been exported to more than 80 countries in Asia, Mid-East, Europe, Africa, Australia, and Latin-America. The marketing network has covered all over the world.
There are 2 general departments in our company: machinery department & mold department. Machinery department focuses on designing and developing various plastic extrusion blows molding machine by learning foreign advanced techniques& administration faith; mold department focuses on mould design and manufacturing of preform mold& extrusion mold&blow mold. According to different character of different plastic material, we have successfully designed different machines, which are suitable for different products: container of PE, PVC, PP, PC, PETG, PS, PAN, PA, PPE, PPO, ABS, POM, TRA, etc(like big tank, collapsible container car plastic hollow part, office equipment,sport facility, toys, mechanical container,5 gallon PC container,tool box, etc). We have an experienced team will design, produce and offer service after service with great team spirit.High quality but reasonable price has been widely approved by our customers from local and abroad.
There are 2 general departments in our company: machinery department & mold department. Machinery department focuses on designing and developing various plastic extrusion blows molding machine by learning foreign advanced techniques& administration faith; mold department focuses on mould design and manufacturing of preform mold& extrusion mold&blow mold. According to different character of different plastic material, we have successfully designed different machines, which are suitable for different products: container of PE, PVC, PP, PC, PETG, PS, PAN, PA, PPE, PPO, ABS, POM, TRA, etc(like big tank, collapsible container car plastic hollow part, office equipment,sport facility, toys, mechanical container,5 gallon PC container,tool box, etc). We have an experienced team will design, produce and offer service after service with great team spirit.High quality but reasonable price has been widely approved by our customers from local and abroad.
