Ht-30 Vertical Hydraulic Injection Molding Machine for Plug
Basic Info
Model No.: HT-30
Product Description
Model NO.: HT-30 Structure: Vertical Plasticizing Way: Screw Type Automation: Automatic Certification: CE, ISO9001:2008, SGS Usage: Vertical Injection Molding Machine Weight: 1 T Material Type: Common Plastic Screw: Alloy Trademark: Honled Specification: SGS/ISO: 9001 2008 HS Code: 8477101090 Type: Injection Blow Molding Plastic Type: Thermoplastic Clamping Way: Hydraulic Computerized: Computerized Color: White Way to Clamping: Hydraulic Delivery Time: 10-15 Days Name: Plastic Injection Molding Machine Port: Shanghia Transport Package: Wooden Package Origin: Changzhou Jiangsu China
Ht-30 Vertical hydraulic Injection Molding Machine for Plug Characteristic
Injection Part:
Double guide-column support and double-cylinder balanced injection can meet various formations of plastic injection
Feed Part:
Fast removal of hopper seat and easy cleaning of hopper mouth
Safety Protection:
Infrared light curtain safety device ensures safe operation
Mold Closing Part:
Diagonally arranged five support points and elbow mould-closing mechanism, design of mold plate
Electrical Part:
Top quality particular computer used for plastic injector plus LCD and language alarm (speaking computer)
Hydraulic System:
Famous brand hydraulic elements are adopted with pressure and flow of the system controlled proportionally
This type of machine is for products in one color.
HT-30 Plastic Vertical Injection Machine Parameter
Our factory show :

Machine and product show :



You may also need below:


Pre-sale service
Sample can be offered clients for approval confirm.
Detail products technical date will be offered.
Before production
Check your products and have detail test before delivery.
Confirm shipping way and leave your correct information before delivery.
Safety shipping
After-sale service
We will track your goods on line and then to guarantee they can reach your place smoothly.
One year warranty time and support technical support all your life-use.
Contact us if you need more details on Hydraulic Injection Moulding Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Injection Moulding Machine、Injection Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
Ht-30 Vertical hydraulic Injection Molding Machine for Plug Characteristic
Injection Part:
Double guide-column support and double-cylinder balanced injection can meet various formations of plastic injection
Feed Part:
Fast removal of hopper seat and easy cleaning of hopper mouth
Safety Protection:
Infrared light curtain safety device ensures safe operation
Mold Closing Part:
Diagonally arranged five support points and elbow mould-closing mechanism, design of mold plate
Electrical Part:
Top quality particular computer used for plastic injector plus LCD and language alarm (speaking computer)
Hydraulic System:
Famous brand hydraulic elements are adopted with pressure and flow of the system controlled proportionally
This type of machine is for products in one color.
HT-30 Plastic Vertical Injection Machine Parameter
Items of Technical Data | HT-30 | ||
Ratio of screw length-diameter | L/D | 17 | |
Screw diameter | mm | 25/28 | |
Screw speed | r/min | 180 | |
Theoretical shot volume | cm3 | 59/74 | |
Injection rate | g/s | 42/58 | |
Shot weight | g | 55/70 | |
Injection pressure | kgf/cm2 | 1850/1475 | |
Clamping model | ------- | Double crank | |
Ejector force/stroke | mm | 40 | |
Clamping force | ton | 1.3 | |
Max. mould plate stroke | mm | 280 | |
Mould thickness | mm | 380 | |
Space between tie rods | mm | 370*230 | |
Mould plate size | mm | 550*410 | |
Heating power | kw | 4 | |
Motor power | kw | 4 | |
Machine weight | T | 1 | |
Machine dimension | m | 1.35*1*2.3 |

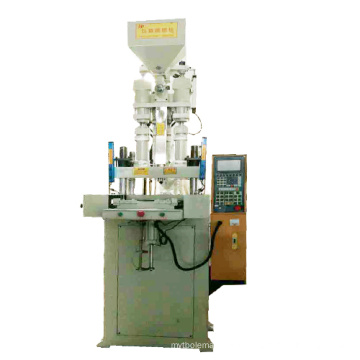

Machine and product show :



You may also need below:


Pre-sale service
Sample can be offered clients for approval confirm.
Detail products technical date will be offered.
Before production
Check your products and have detail test before delivery.
Confirm shipping way and leave your correct information before delivery.
Safety shipping
After-sale service
We will track your goods on line and then to guarantee they can reach your place smoothly.
One year warranty time and support technical support all your life-use.
Contact us if you need more details on Hydraulic Injection Moulding Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Injection Moulding Machine、Injection Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
