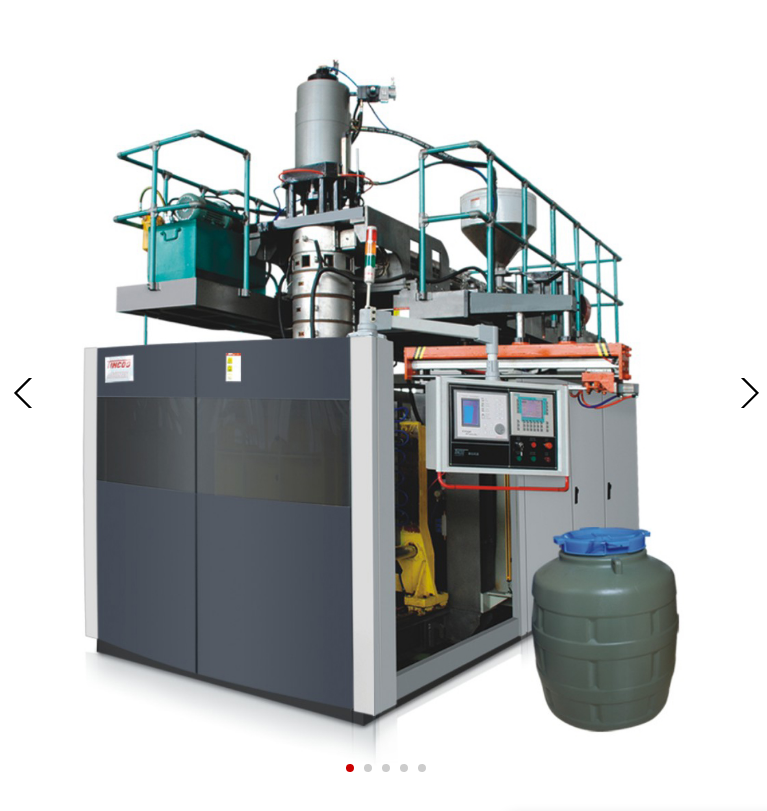

DHB110 Blow Molding Machine
Product Description
Product Overview
DHB110 Blow Molding Machine General Introduction

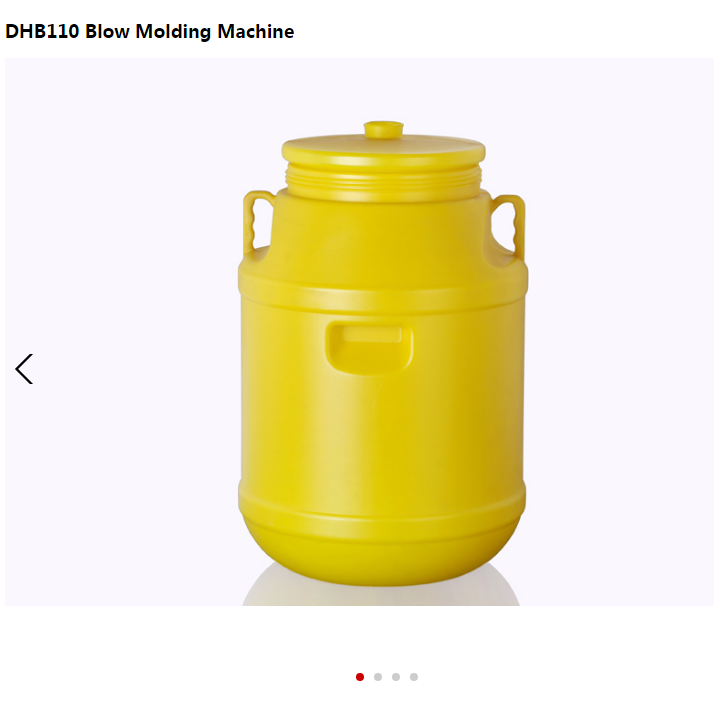

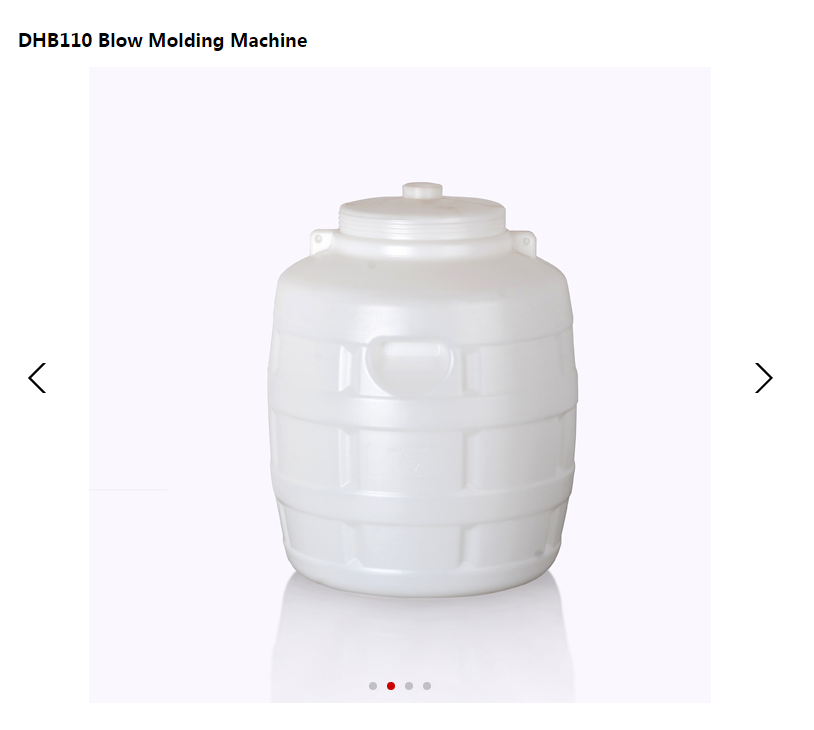

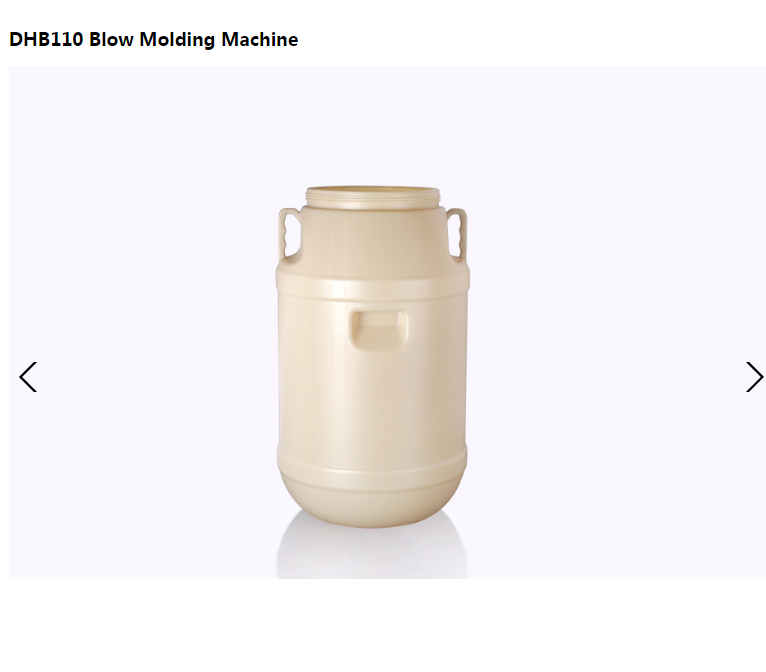

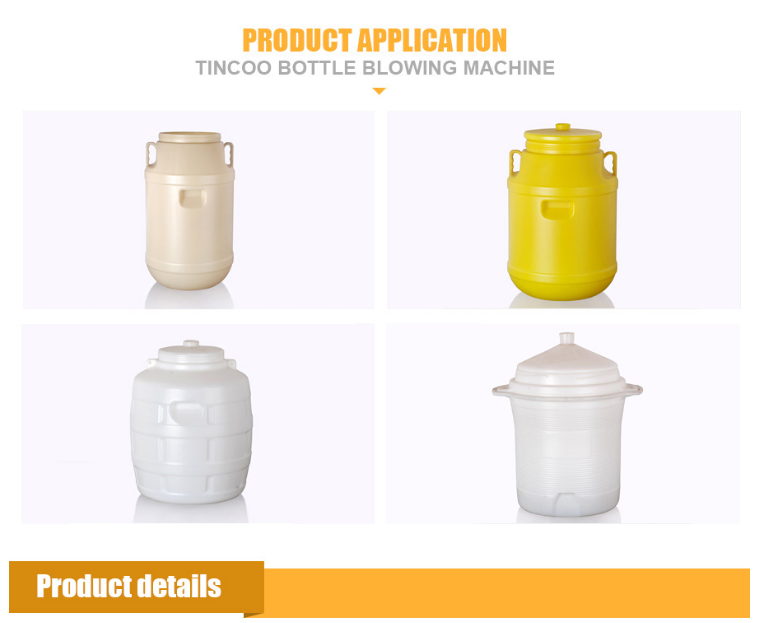

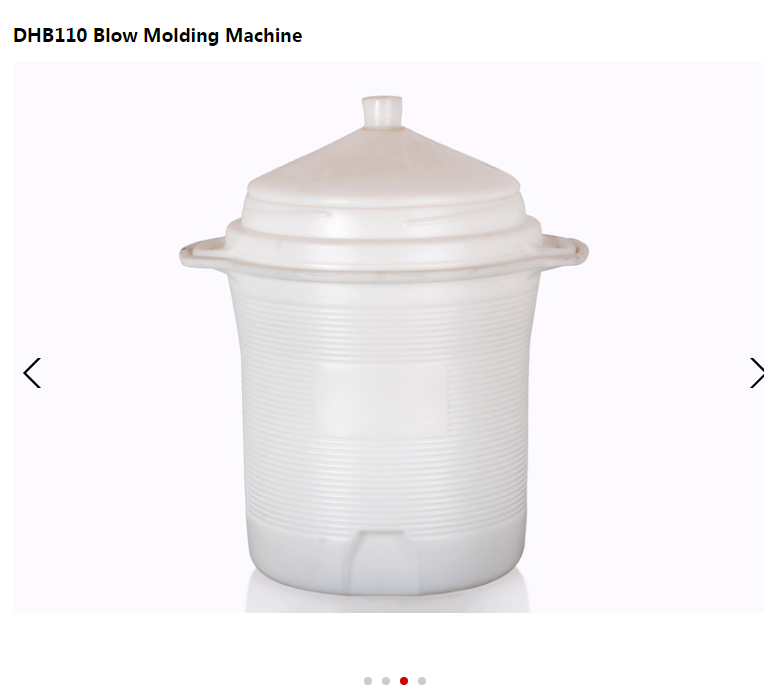

DHB110 blow molding machine is mainly applicable to the production of various packing barrels with PE and capacity between 10~160L,toolbox,motorcar parts such as gasoline tank,wind pipe and other large and medium-sized plastic hollow products.
The machine adopts new patent of two pull-rod type closing-mold device; double-folding accumulator head; extrusion device, equipped with complete blowing device and product taking out device, and entirely achieves full automatic production.
DHB110 blow molding machine is mainly applicable to the production of various packing barrels with PE and capacity between 10~160L,toolbox,motorcar parts such as gasoline tank,wind pipe and other large and medium-sized plastic hollow products.
The machine adopts new patent of two pull-rod type closing-mold device; double-folding accumulator head; extrusion device, equipped with complete blowing device and product taking out device, and entirely achieves full automatic production.
FEATURES AT A GLANCE
DHB110 Blow Molding Machine Advantages
1.This blow moulding machine adopts new patent of two pull-rod type closing-mold device;double-folding accumulator head;extrusion device and product taking-out device, and entirely achieves full automatic production.
2.The electrical control system adopts Complete computer control to automatically conduct to automically conduct technical parameter optimization and trouble diagnosis with high control precision and good reliability.
3.This series,completely designed and manufactured according to German standards of same model is the model with ration of performance to price at present.
Advanced processing equipment:
1. Introducing advanced technology from Germany, Italy, Japan etc.
2. Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
3. Holding over 40 items Patent Technologies.
1.This blow moulding machine adopts new patent of two pull-rod type closing-mold device;double-folding accumulator head;extrusion device and product taking-out device, and entirely achieves full automatic production.
2.The electrical control system adopts Complete computer control to automatically conduct to automically conduct technical parameter optimization and trouble diagnosis with high control precision and good reliability.
3.This series,completely designed and manufactured according to German standards of same model is the model with ration of performance to price at present.
Advanced processing equipment:
1. Introducing advanced technology from Germany, Italy, Japan etc.
2. Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
3. Holding over 40 items Patent Technologies.
PRODUCT SPECIFICATIONS
SPECIFICATIONS | UNIT | DHB-110 |
Material | — | PE、PP… |
Max container capacity | L | 160 |
Number of die | set | 1 |
Output(dry cycle) | pcs/hr | 300 |
Total weight | ton | 20 |
Machine dimension(L×W×H) | m | 6.0×2.9×4.8 |
ACCUMULATOR HEAD | ||
Accumulator capacity | L | 16 |
Number of die heating | zone | 5 |
Power of die heating | KW | 30 |
Die diamenter | mm | 510 |
Injection pressure | Mpa | 8 |
Max.injection speed | kg/sec. | 1.5 |
CLAMPING UNIT | ||
Clamping force | KN | 720 |
Platen opening stroke | mm | 500-1500 |
Platen size | mm | 1300×1300 |
Max mould size(W×H) | mm | 900×1400 |
Mould thickness | mm | 510-700 |
EXTRUDER UNIT | ||
Screw diameter | mm | 110 |
Screw L/D | L/D | 25:1 |
Extruding volume | Kg/hr | 200-280 |
Screw speed | r/min | 10-86 |
Extruder heating power | KW | 28 |
Extruder driving power | KW | 75 |
Extruder | ||
Oil pump driving power | KW | 37 |
Servo driving power | KW | 4 |
Heating power | KW | — |
Average energy consumption | KW | 75 |
Air pressure | Mpa | 0.7 |
Air consumption | m³/min | 1 |
Cooling water consumption | m³/min | 0.6 |
