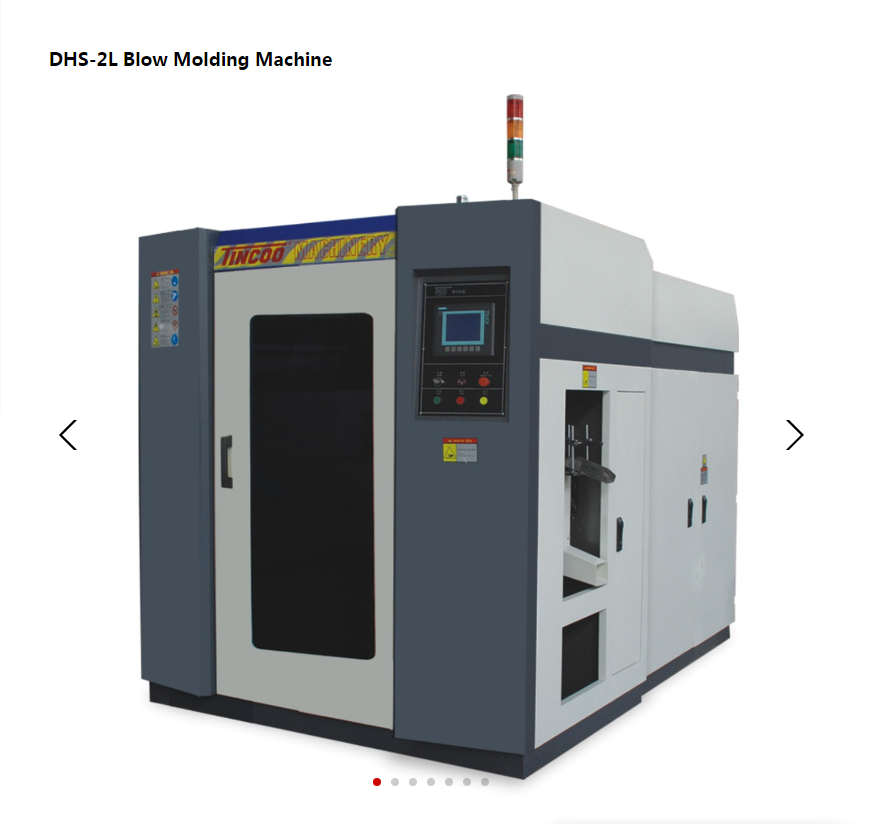

DHS-2L Blow Molding Machine--2 Dieheads Single Work Station

Product Description

Product Overview
DHS-2L Blow Molding Machine General Introduction
1. DHS-2L blow molding machine is a single station machine, and suitable for producing high quality container with medium output with from one to six fold die head, for use in the packaging of petroleum, cosmetics, chemicals, pharmaceuticals, food, toys and auto-parts.
2. The clamping system is a high-precision single-station linear guide, extrusion system using a hard gear reducer and inverter imported from Japan.
3. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.
4. The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical part.

DHS-2L Blow Molding Machine Basic Components

1. Die: Vertical first-in first-out structure
2. Extruder unit: Imported automatic temperature control module, with the screw driven by converter electrical machine and hard gear surface reducer to achieve infinite speed variation.
3. Clamping unit: Hydraulic fixed bi-directional clamping system with good stability.
4. Hydraulic system: Imported hydraulic unit and proportional control.
5. Electrical system: Siemens PLC, world brand, electrical components
FEATURES AT A GLANCE
DHS-2L Blow Molding Machine Advantages
1. Machine platen can be moved down & up.
2. Machine platen has been strengthened.
3. All tubes and lines are located in good order.
4. Mold-moving stand is in box shape.Blow moulding machine can make movement more stable and avoid distortion.
5. Tie bars are strengthened to make movement more stable
6. Mold-closing and mold-moving cylinder has been equipped with joint bearing. It can help protect mold-closing and mold-moving cylinder.
7. New blow construction. It can blow vertically and even blow from certain angle.
8. Blow construction has connected to exhausting air pipe. It can make product cool down more quickly.
9. Machine is with auto deflashing.
10. Machine can be connected to conveyor to carry the slitter edge to crusher to be reused.
11. Machine can be connected to conveyor to carry out bottle and connects the filling machine directly.
12. Machine can be equipped with robot arm to take out the bottle.
13. Machine can be equipped with circle-type cutter to trimmer the bottle with foil-sealing type.
14. Mold platen has been professionally designed in construction and shape to keep stable.
15. New and safe machine door.
16. Machine is equipped with reduction valve in the mold-moving parts. It can make mold move more quickly and more stably.
17. Machine is equipped with manual adjuster to adjust the position of mold and blow pin. It makes the adjustment more
conveniently.
18. Screw stand is of high rigidity.
19. Screw can be adjusted forward and backward, leftward and rightward.

Advanced processing equipment:
1. Introducing advanced technology from Germany, Italy, Japan etc.
2. Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
3. Holding over 40 items Patent Technologies.
PRODUCT SPECIFICATIONS
SPECIFICATIONS
UNIT
DHS-2L
Material
PE、PP…
Max container capacity
L
2
Number of die
set
1、2、3、4
Total weight
ton
4
Machine dimension(L×W×H)
m
2.5X1.6X2.4
ACCUMULATOR HEAD
Number of die heating
zone
3
Power of die heating
KW
4.2
Max die-pin diamenter
mm
60
Center distance of twin-die
mm
130
Center distance of tri-die
mm
85
Center distance of four-die
mm
65
Center distance of five-die
mm
Center distance of six-die
mm
CLAMPING UNIT
Clamping force
KN
40
Platen opening stroke
mm
158-410
Platen size
mm
290X320
Max mould size(W×H)
mm
320X320
Mould thickness
mm
160-240
EXTRUDER UNIT
Screw diameter
mm
50
Screw L/D
L/D
25:1
Extruding volume
Kg/hr
40-50
Number of heating zone
zone
3
Extruder heating power
KW
3-4.4
Extruder driving power
KW
11-15
POWER
Oil pump driving power
KW
5.5
Fan power for screw
KW
0.25
Servo driving power
KW
Total power
KW
22
Air pressure
Mpa
0.6
Air consumption
m³/min
0.4
Average energy consumption
KW
12
Cooling water consumption
m³/min
