DHD-5L Blow Molding Machine--1 diehead double work station
1 diehead double work station Can produce 220-300 PCS/hour

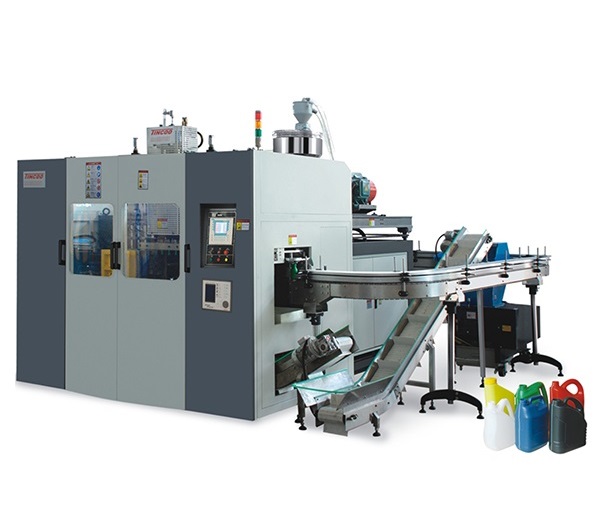

DHD-5L Blow Molding Machine
*Special design can be made to order to for visistipe(VS) or two colors(TC) or two layers(TL) bottles.
1. DHD-5L blow molding machine is a double station machine, and suitable for producing high quality container with medium output with from one to six fold die head, for use in the packaging of petroleum, cosmetics, chemicals, pharmaceuticals, food, toys and auto-parts.
2. The clamping system is a high-precision single-station linear guide, extrusion system using a hard gear reducer and inverter imported from Japan.
3. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.
4. The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical part.
1. Die: Vertical first-in first-out structure
2. Extruder unit: Imported automatic temperature control module, with the screw driven by converter electrical machine and hard
gear surface reducer to achieve infinite speed variation.
3. Clamping unit: Hydraulic fixed bi-directional clamping system with good stability.
4. Hydraulic system: Imported hydraulic unit and proportional control.
5. Electrical system: Siemens PLC, world brand, electrical components
Advanced processing equipment:
2. Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
3. Holding over 40 items Patent Technologies.

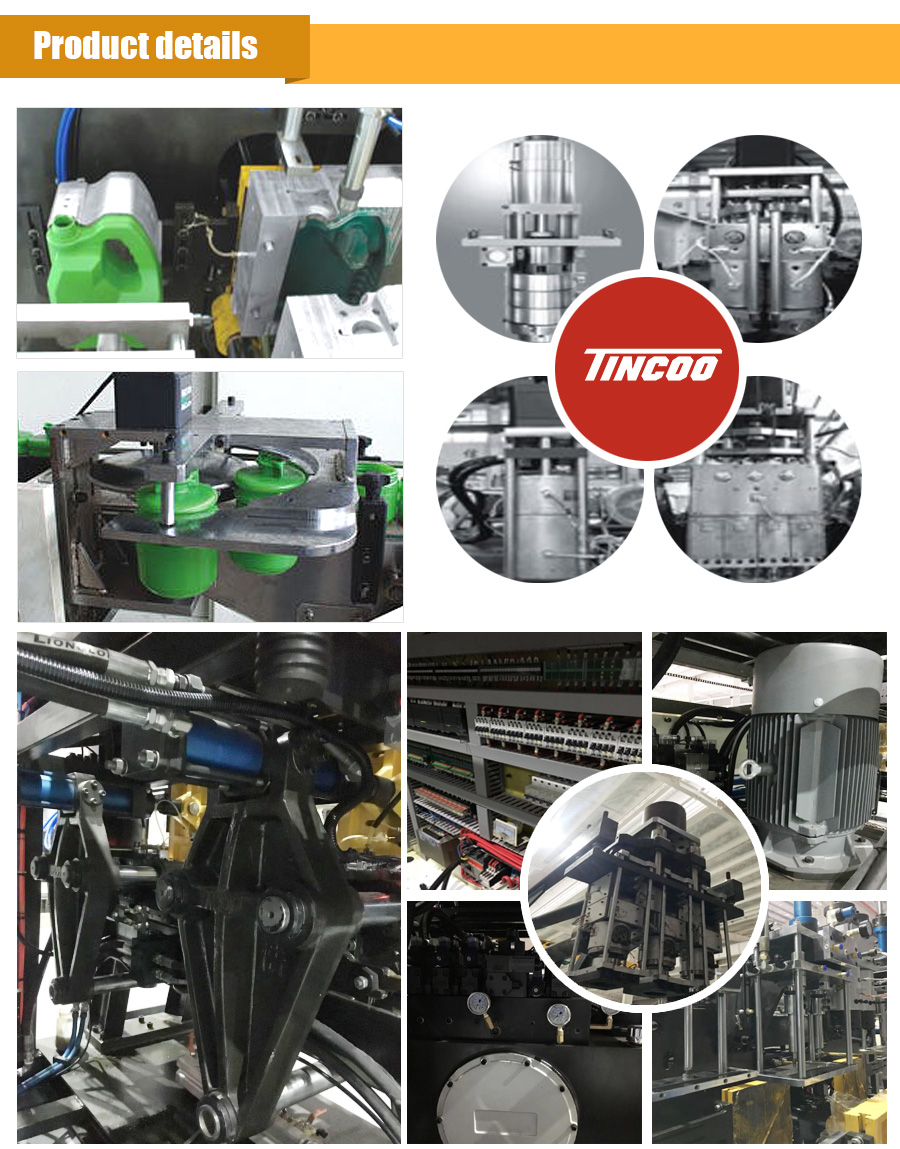

2. Machine platen has been strengthened.
3. All tubes and lines are located in good order.
4. Mold-moving stand is in box shape. It can make movement more stable and avoid distortion.
5. Tie bars are strengthened to make movement more stable
6. Mold-closing and mold-moving cylinder has been equipped with joint bearing. It can help protect mold-closing and mold-moving cylinder.
7. New blow construction. It can blow vertically and even blow from certain angle.
8. Blow construction has connected to exhausting air pipe. It can make product cool down more quickly.
9. Machine is with auto deflashing.
10. Machine can be connected to conveyor to carry the slitter edge to crusher to be reused.
11. Machine can be connected to conveyor to carry out bottle and connects the filling machine directly.
12. Machine can be equipped with robot arm to take out the bottle.
13. Machine can be equipped with circle-type cutter to trimmer the bottle with foil-sealing type.
14. Mold platen has been professionally designed in construction and shape to keep stable.
15. New and safe machine door.
16. Machine is equipped with reduction valve in the mold-moving parts. It can make mold move more quickly and more stably.
17. Machine is equipped with manual adjuster to adjust the position of mold and blow pin. It makes the adjustment more
18. Screw stand is of high rigidity.
19. Screw can be adjusted forward and backward, leftward and rightward.
Max container capacity
Number of die heating
Number of die heating
Power of die heating
Max die-pin diamenter
Center distance of twin-die
Center distance of tri-die
Center distance of four-die
Center distance of five-die
Center distance of six-die
Platen opening stroke
Max mould size(W×H)
Number of heating zone
Extruder heating power
Extruder driving power
Oil pump driving power
Fan power for screw
Servo driving power
Average energy consumption
Cooling water consumption
