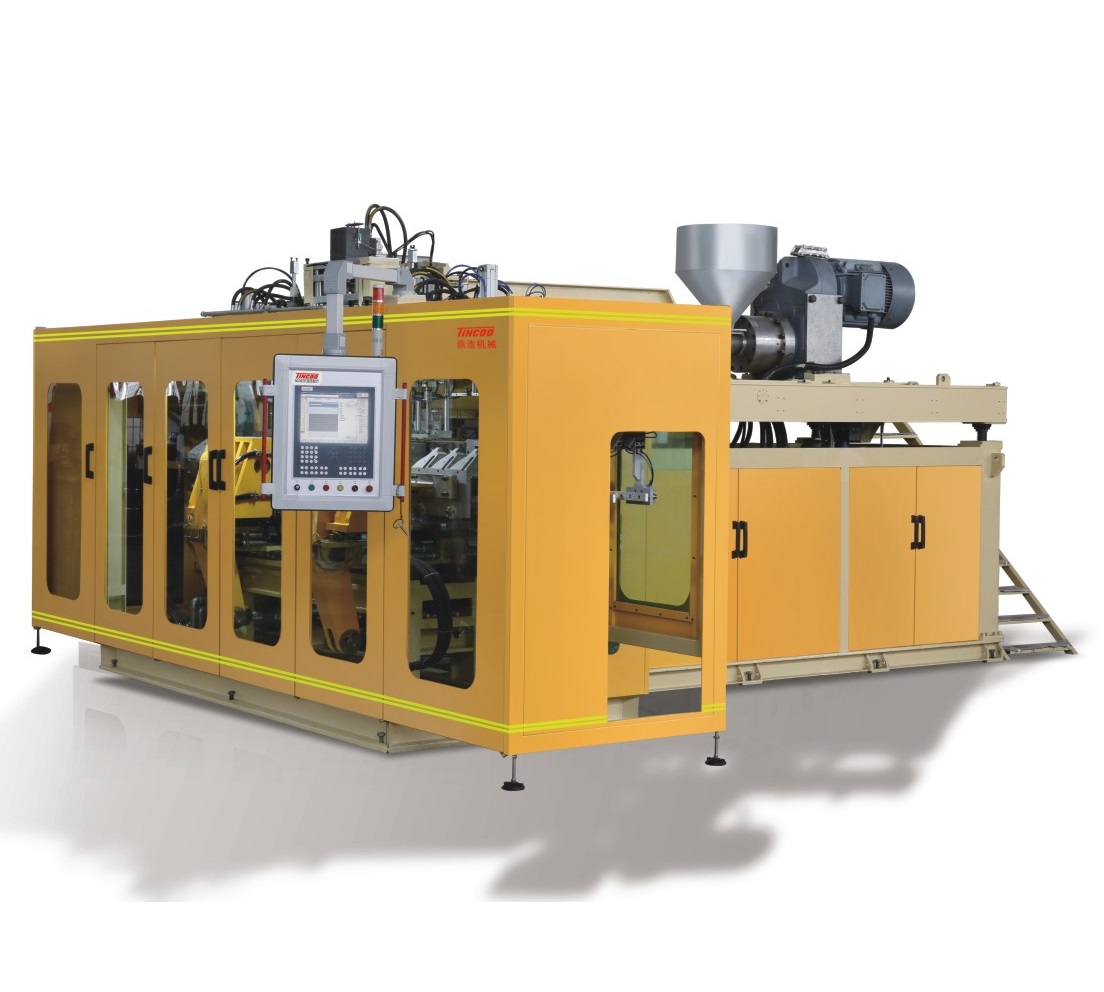

DHD-QK100 Blow Molding Machine--4 diehead double work station
Product Description
Product Overview
2L bottle -- 4 diehead double work station Can produce 1400-1600 PCS/hour Diehead centre distance is 140mm Bottle centre distance is 120mm
DHD-QK100 Blow Molding Machine General Introduction
1. DHD-QK100 blow molding machine is double station with HIGH-SPEED, Advanced technology from America and European countries. Dry cycle stroke is 700mm, double station only takes 3.8s. 8 heads, multi-layers, fully automatic.
2. Using in packaging of 200ml-5000ml washing, cosmetics, food and petroleum containers.
3. The plastic fuel tank is 30%-50% lighter than that of the same specification. The machine processes HMWHDPE as the grass roots.
4. Manipulator: Products taking-out and put them on the conveyor, driven by FESTO cylinder. All the system controlled by solenoid directional valve.
5. Die Head: Beck off control system with 100 point LVDT parison control. Machine can make one layer, view stripe, or multilayer products and machine up to 10 head meet your requirements. Pneumatic valve from FESTO and Hydraulic valve from Rexroth Germany.
2. Using in packaging of 200ml-5000ml washing, cosmetics, food and petroleum containers.
3. The plastic fuel tank is 30%-50% lighter than that of the same specification. The machine processes HMWHDPE as the grass roots.
4. Manipulator: Products taking-out and put them on the conveyor, driven by FESTO cylinder. All the system controlled by solenoid directional valve.
5. Die Head: Beck off control system with 100 point LVDT parison control. Machine can make one layer, view stripe, or multilayer products and machine up to 10 head meet your requirements. Pneumatic valve from FESTO and Hydraulic valve from Rexroth Germany.
DHD-QK100 Blow Molding Machine Basic Components
1. Die: Vertical first-in second-out structure
2. Extruder unit: Imported automatic temperature control module, with the screw driven by converter electrical machine and hard
gear surface reducer to achieve infinite speed variation.
3. Clamping unit: Hydraulic fixed bi-directional clamping system with good stability.
4. Hydraulic system: Imported hydraulic unit and proportional control.
5. Electrical system: Siemens PLC, world brand, electrical components
2. Extruder unit: Imported automatic temperature control module, with the screw driven by converter electrical machine and hard
gear surface reducer to achieve infinite speed variation.
3. Clamping unit: Hydraulic fixed bi-directional clamping system with good stability.
4. Hydraulic system: Imported hydraulic unit and proportional control.
5. Electrical system: Siemens PLC, world brand, electrical components
FEATURES AT A GLANCE
Advanced processing equipment:
1. Introducing advanced technology from Germany, Italy, Japan etc.
2. Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
3. Holding over 40 items Patent Technologies.
2. Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
3. Holding over 40 items Patent Technologies.
DHD-QK100 Blow Molding Machine Advantages
1. Machine platen can be moved down & up.
2. Machine platen has been strengthened.
3. All tubes and lines are located in good order.
4. Mold-moving stand is in box shape. It can make movement more stable and avoid distortion.
5. Tie bars are strengthened to make movement more stable
6. Mold-closing and mold-moving cylinder has been equipped with joint bearing. It can help protect mold-closing and mold-moving cylinder.
7. New blow construction. It can blow vertically and even blow from certain angle.
8. Blow construction has connected to exhausting air pipe. It can make product cool down more quickly.
9. Machine is with auto deflashing.
10. Machine can be connected to conveyor to carry the slitter edge to crusher to be reused.
11. Machine can be connected to conveyor to carry out bottle and connects the filling machine directly.
12. Machine can be equipped with robot arm to take out the bottle.
13. Machine can be equipped with circle-type cutter to trimmer the bottle with foil-sealing type.
14. Mold platen has been professionally designed in construction and shape to keep stable.
15. New and safe machine door.
16. Machine is equipped with reduction valve in the mold-moving parts. It can make mold move more quickly and more stably.
17. Machine is equipped with manual adjuster to adjust the position of mold and blow pin. It makes the adjustment more
conveniently.
18. Screw stand is of high rigidity.
19. Screw can be adjusted forward and backward, leftward and rightward.
1. Machine platen can be moved down & up.
2. Machine platen has been strengthened.
3. All tubes and lines are located in good order.
4. Mold-moving stand is in box shape. It can make movement more stable and avoid distortion.
5. Tie bars are strengthened to make movement more stable
6. Mold-closing and mold-moving cylinder has been equipped with joint bearing. It can help protect mold-closing and mold-moving cylinder.
7. New blow construction. It can blow vertically and even blow from certain angle.
8. Blow construction has connected to exhausting air pipe. It can make product cool down more quickly.
9. Machine is with auto deflashing.
10. Machine can be connected to conveyor to carry the slitter edge to crusher to be reused.
11. Machine can be connected to conveyor to carry out bottle and connects the filling machine directly.
12. Machine can be equipped with robot arm to take out the bottle.
13. Machine can be equipped with circle-type cutter to trimmer the bottle with foil-sealing type.
14. Mold platen has been professionally designed in construction and shape to keep stable.
15. New and safe machine door.
16. Machine is equipped with reduction valve in the mold-moving parts. It can make mold move more quickly and more stably.
17. Machine is equipped with manual adjuster to adjust the position of mold and blow pin. It makes the adjustment more
conveniently.
18. Screw stand is of high rigidity.
19. Screw can be adjusted forward and backward, leftward and rightward.
PRODUCT SPECIFICATIONS
SPECIFICATIONS | UNIT | DHD-QK100 |
Material | — | PE、PP、… |
Max container capacity | L | 8+8 |
Number of die | set | 1.2.3.4.6.8 |
Total weight | ton | 20 |
Machine dimension(L×W×H) | m | 6.3×3.9×2.7 |
DIE HEAD | ||
Number of die heating | zone | 12-20 |
Power of die heating | KW | 10-19.69 |
Max die-pin diamenter | mm | 140 |
Center distance of twin-die | mm | 280 |
Center distance of tri-die | mm | 190 |
Center distance of four-die | mm | 140 |
Center distance of six-die | mm | 100 |
Center distance of eight-die | mm | 75 |
CLAMPING UNIT | ||
Clamping force | KN | 190 |
Platen opening stroke | mm | 270-510 |
Platen size | mm | 410×600 |
Max mould size(W×H) | mm | 410×690 |
Mould thickness | mm | 275-380 |
EXTRUDER UNIT | ||
Screw diameter | mm | 100 |
Screw L/D | L/D | 25:1 |
Extruding volume | Kg/hr | 200-280 |
Number of heating zone | zone | 4 |
Extruder heating power | KW | 26.4 |
Extruder driving power | KW | 55-75 |
POWER | ||
Oil pump drving power | KW | 30 |
Fan power for screw | KW | 0.6 |
Total power | KW | 157 |
Air pressure | Mpa | 0.8 |
Air consumption | m3/min | 2-3 |
Average energy consumption | KW | 64 |
