DHD-1L Blow Molding Machine--1 Diehead Double Work Station
Product Description
Product Overview
1 Diehead Double Work Station Can produce 600-750 PCS/hour

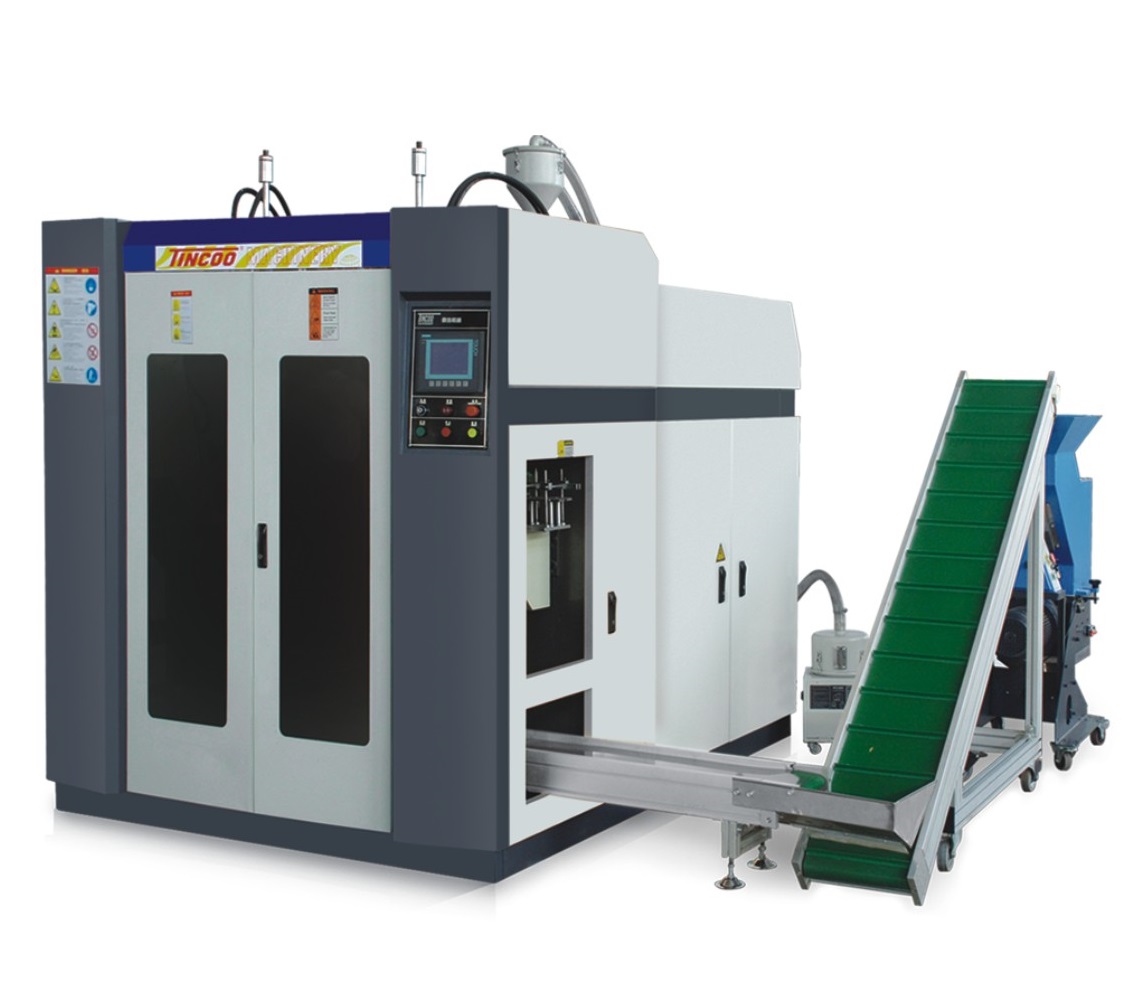

DHD-1L Blow Molding Machine General Introduction
1. DHD-1L blow molding machine is a double station machine, and suitable for producing high quality container with medium output with from one to six fold die head, for use in the packaging of petroleum, cosmetics, chemicals, pharmaceuticals, food, toys and auto-parts.
2. The clamping system is a high-precision single-station linear guide, extrusion system using a hard gear reducer and inverter imported from Japan.
3. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.
4. The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical part.
2. The clamping system is a high-precision single-station linear guide, extrusion system using a hard gear reducer and inverter imported from Japan.
3. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.
4. The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical part.

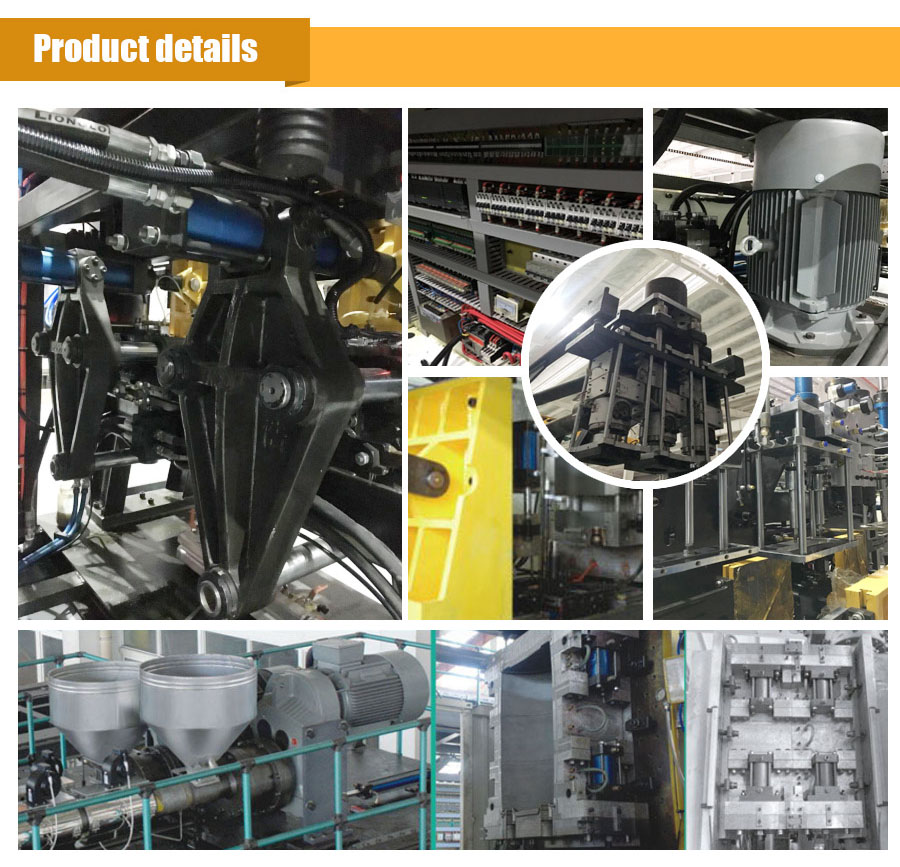

DHD-1L Blow Molding Machine Basic Components
1. Die: Vertical first-in first-out structure
2. Extruder unit: Imported automatic temperature control module, with the screw driven by converter electrical machine and hard gear surface reducer to achieve infinite speed variation.
3. Clamping unit: Hydraulic fixed bi-directional clamping system with good stability.
4. Hydraulic system: Imported hydraulic unit and proportional control.
5. Electrical system: Siemens PLC, world brand, electrical components
2. Extruder unit: Imported automatic temperature control module, with the screw driven by converter electrical machine and hard gear surface reducer to achieve infinite speed variation.
3. Clamping unit: Hydraulic fixed bi-directional clamping system with good stability.
4. Hydraulic system: Imported hydraulic unit and proportional control.
5. Electrical system: Siemens PLC, world brand, electrical components
FEATURES AT A GLANCE
Advanced processing equipment:
1. Introducing advanced technology from Germany, Italy, Japan etc.
2. Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
3. Holding over 40 items Patent Technologies.
2. Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
3. Holding over 40 items Patent Technologies.
DHD-1L Blow Molding Machine Advantages
1. Machine platen can be moved down & up.
2.Blow moulding machine platen has been strengthened.
3. All tubes and lines are located in good order.
4. Mold-moving stand is in box shape. It can make movement more stable and avoid distortion.
5. Tie bars are strengthened to make movement more stable
6. Mold-closing and mold-moving cylinder has been equipped with joint bearing. It can help protect mold-closing and mold-moving cylinder.
7. New blow construction. It can blow vertically and even blow from certain angle.
8. Blow construction has connected to exhausting air pipe. It can make product cool down more quickly.
9. Machine is with auto deflashing.
10. Machine can be connected to conveyor to carry the slitter edge to crusher to be reused.
11. Machine can be connected to conveyor to carry out bottle and connects the filling machine directly.
12. Machine can be equipped with robot arm to take out the bottle.
13. Machine can be equipped with circle-type cutter to trimmer the bottle with foil-sealing type.
14. Mold platen has been professionally designed in construction and shape to keep stable.
15. New and safe machine door.
16. Machine is equipped with reduction valve in the mold-moving parts. It can make mold move more quickly and more stably.
17. Machine is equipped with manual adjuster to adjust the position of mold and blow pin. It makes the adjustment more
conveniently.
18. Screw stand is of high rigidity.
19. Screw can be adjusted forward and backward, leftward and rightward.
2.Blow moulding machine platen has been strengthened.
3. All tubes and lines are located in good order.
4. Mold-moving stand is in box shape. It can make movement more stable and avoid distortion.
5. Tie bars are strengthened to make movement more stable
6. Mold-closing and mold-moving cylinder has been equipped with joint bearing. It can help protect mold-closing and mold-moving cylinder.
7. New blow construction. It can blow vertically and even blow from certain angle.
8. Blow construction has connected to exhausting air pipe. It can make product cool down more quickly.
9. Machine is with auto deflashing.
10. Machine can be connected to conveyor to carry the slitter edge to crusher to be reused.
11. Machine can be connected to conveyor to carry out bottle and connects the filling machine directly.
12. Machine can be equipped with robot arm to take out the bottle.
13. Machine can be equipped with circle-type cutter to trimmer the bottle with foil-sealing type.
14. Mold platen has been professionally designed in construction and shape to keep stable.
15. New and safe machine door.
16. Machine is equipped with reduction valve in the mold-moving parts. It can make mold move more quickly and more stably.
17. Machine is equipped with manual adjuster to adjust the position of mold and blow pin. It makes the adjustment more
conveniently.
18. Screw stand is of high rigidity.
19. Screw can be adjusted forward and backward, leftward and rightward.
PRODUCT SPECIFICATIONS
SPECIFICATIONS | UNIT | DHD-1L |
Material | — | PE、PP… |
Max container capacity | L | 1 |
Number of die | set | 1、2、3、4 |
Total weight | ton | 2.5 |
Machine dimension(L×W×H) | m | 2.56×1.8×2.24 |
ACCUMULATOR HEAD | ||
Number of die heating | zone | 4 |
Power of die heating | KW | 1.3-2.6 |
Max die-pin diamenter | mm | 70 |
Center distance of twin-die | mm | 100 |
Center distance of tri-die | mm | 70 |
Center distance of four-die | mm | 50 |
Center distance of five-die | mm | — |
Center distance of six-die | mm | — |
CLAMPING UNIT | ||
Clamping force | KN | 27 |
Platen opening stroke | mm | 110-260 |
Platen size | mm | 260×210 |
Max mould size(W×H) | mm | 280×210 |
Mould thickness | mm | 110-150 |
EXTRUDER UNIT | ||
Screw diameter | mm | 45 |
Screw L/D | L/D | 24:1 |
Extruding volume | Kg/hr | 25 |
Number of heating zone | zone | 4 |
Extruder heating power | KW | 4 |
Extruder driving power | KW | 7.5 |
POWER | ||
Oil pump driving power | KW | 5.5 |
Fan power forscrew | KW | — |
Servo driving power | KW | — |
Total power | KW | 18.6 |
Air pressure | Mpa | 0.6 |
Air consumption | m³/min | 0.4-0.6 |
Average energy consumption | KW | 10 |
Cooling water consumption | m³/min | 0.8 |
SALES AND SERVICE NETWORK
Tincoo(Changxing) Packaging Technology Co.,Ltd
TINCOO MACHINERY is a professional supplier devoted to the designing & production of big-scaled and multi-layer extrusion molding machine. The company is located on the south shore of Taihu Lake--Huzhou, with total investment of 10 million dollars, covering a total area of 58,000 square meters. Machines from the company are mainly for export, and have been exported to more than 100 countries in Asia, Mid-East, Europe, Africa, Australia, and Latin-America. The marketing network has covered all over the world.
There are 2 general departments in our company: machinery department & mold department. Machinery department focuses on designing and developing various plastic extrusion blows molding machine by learning foreign advanced techniques& administration faith; mold department focuses on mould design and manufacturing of preform mold& extrusion mold&blow mold. According to different character of different plastic material, we have successfully designed different machines, which are suitable for different products: container of PE, PVC, PP, PC, PETG, PS, PAN, PA, PPE, PPO, ABS, POM, TRA, etc(like big tank, collapsible container car plastic hollow part, office equipment,sport facility, toys, mechanical container,5 gallon PC container,tool box, etc). We have an experienced team will design, produce and offer service after service with great team spirit.High quality but reasonable price has been widely approved by our customers from local and abroad.
